2500 SERIES - COMPACT

Home Products 2500 Series - Compact

2500 Series - Compact

SHOP SERIES
  • Provides same functionality as the Classic-sized system but in a smaller form factor and at a lower cost
  • Remains fully compatible with all other 2500 Series® products as well as 505® series components
  • Offers multiple remote I/O network options
  • Delivers full-featured performance supporting up to 8192 I/O points and 512 PID loops
2500 Series - Compact

Series Overview

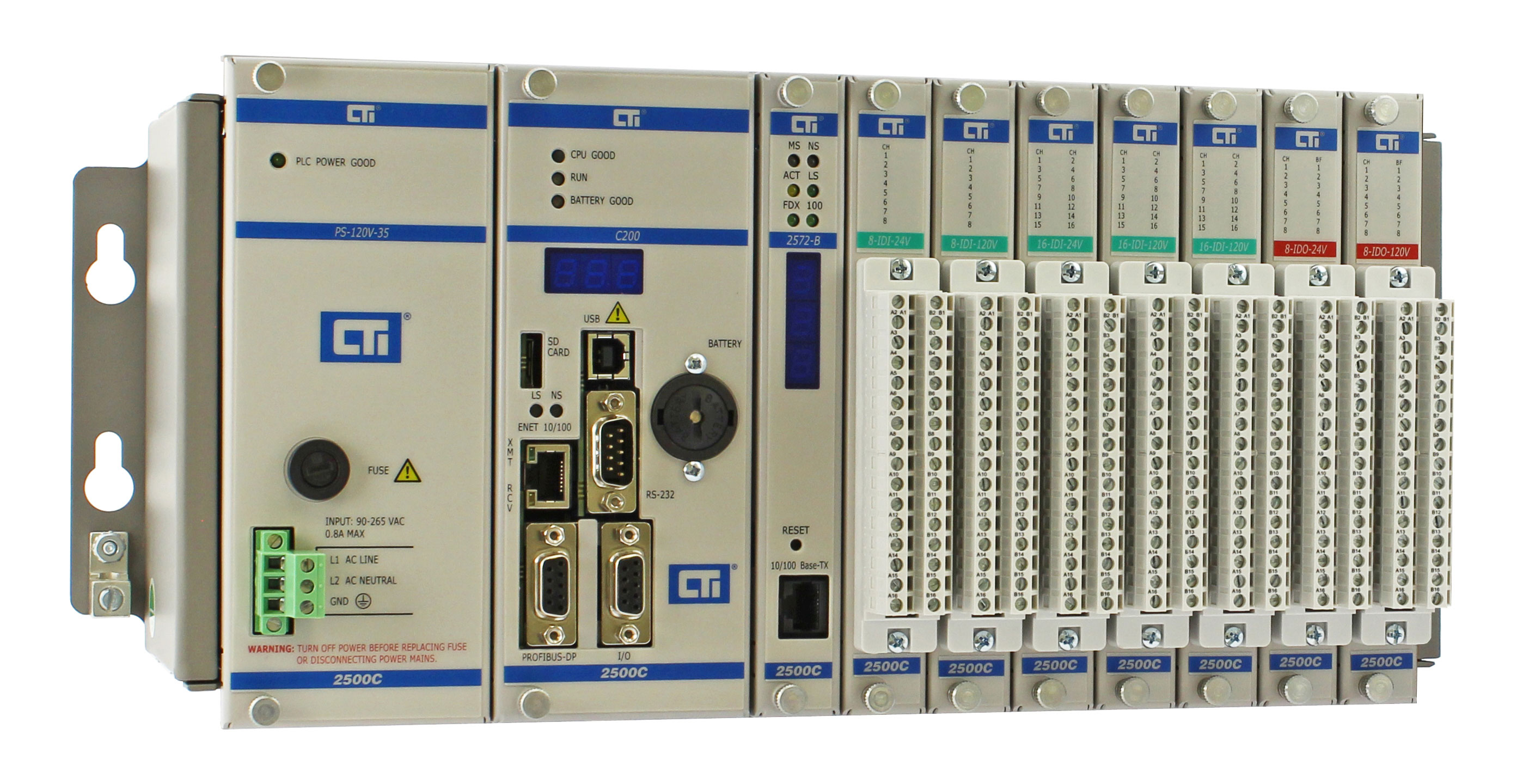

The 2500 Series® Compact I/O System is designed for use in a broad range of applications, including those that require discrete and analog control. It is compatible with the 2500 Series® System, but offers a much smaller form factor.  Components include the Base, Power Supply, Remote Base Controller (allows connection to any Profibus Master) and  I/O modules. These systems perform the same functions as relays, static control, or card logic control systems. They can detect the change in state of input signals from such devices as pushbuttons, limit switches, and analog sensors. Acting on this information and executing a relay ladder logic (RLL) program stored in memory, the CPU produces output signals to drive motor starters, solenoids, pilot lights, modulating control valves, etc. These signals are used to regulate the operation of various pieces of equipment. A full line of discrete, analog, word, and intelligent I/O modules are available for handling almost any input or output specification. These I/O modules are rugged, plug-in devices capable of functioning within operating specifications in harsh environments.

Application Highlights

  • Compact I/O Replacing ET200B Block I/O - a global customer with more than $1B in sales replaced its aging ET200B I/O blocks with CTI's 2500 Series Compact I/O
  • Harris M1000-B Printing Press Upgrade - replacement of TI560/565 with CTI 2500-C300 on Heidelberg-Harris M1000B Web Printing Press

Products

Filter By Type

  • Analog I/O (2)
  • Processors (3)
  • Communications Adapters (1)
  • Bases (4)
  • Power Supplies (2)
  • Remote Base Controllers (2)
  • Digital I/O (10)
  • Relay Output (1)
  • Temperature Input (2)
  • I/O Connectors (2)
